DP110 - Roller shutters for industrial installation

There are industrial installations which require special technical closures, like roller shutters able to withstand against hard and adverse environment and climatic conditions.

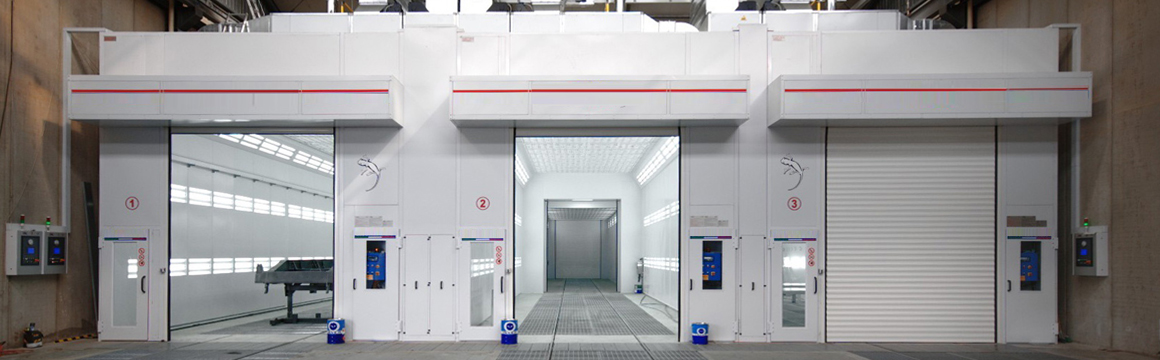

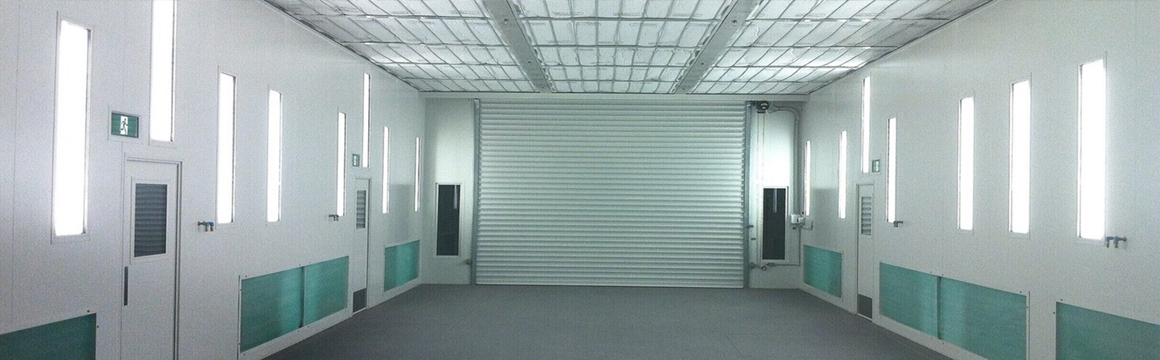

Oven booths, systems for drying, polymerization, curing, baking, cooling, sand blasing, handling and washing of steel, cooling towers or recycling installations, require roller shutters able to insulate both thermally and acoustically the rooms and able to withstand against humid or corrosive atmosphere.

I.S.E.A. has solutions which satisfy these conditions, roller shutters made by “noble” materials, like aluminium or stainless steel able to long-last in time and bad weather-resistant, and insulated roller shutters with high thermic/acoustic insulation.

During years, a great experience has been developed in special electrical operations, intensive uses, electronic control-boards suitable for each kind of industrial system
to handle and to program control of roller shutters.

For high-risk explosion places (flame, spark, flammability of air, combustibles, gases,….) it’s possibile to have ATEX flame proof electric gear motors.

We designed and supplied closures suitable for use in special temperatures, using gear motors equipped with cooling fans or by special fittings with heating cables inside the vertical side guides.

All the solutions use strong, long-lasting and secure ignition systems, combined with safety and emergency systems.

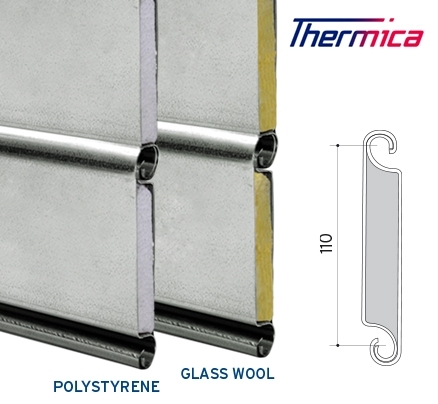

THERMAL INSULATION - POLYSTYRENE OR GLASS WOOL

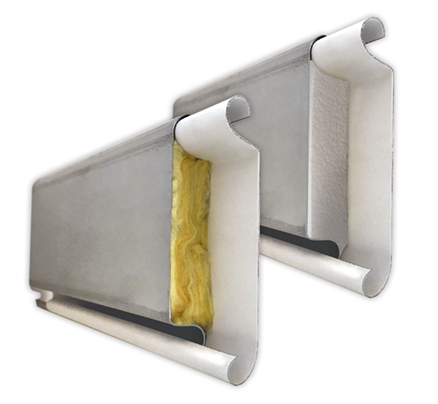

Insulated roller shutter with double wall system and insulated material in inside. It grants an optimal thermal insulation.
The use of profiles with reinforced section helps to increase the rigidity and withstanding of curtain.

It is possible to realize the slats with different materials between the internal and external walls
• Galvanized steel
• Pre-painted galvanized steel
• Stainess steel AISI 304
• Stainless steel AISI 316
• Aluminum mill finish

SOLUTION IN GALVANIZED STEEL AND GLASS WOOL

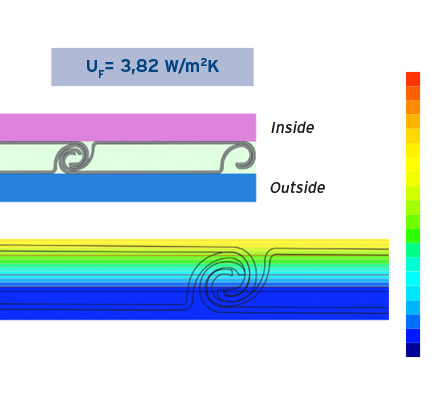

Value of thermal transmittance
In the version with internal and external steel slats and glass wool insulation, the thermal transmission coefficient is 3,82 W/mqk.

ACOUSTIC INSULATION

PIOMBOPREN^®

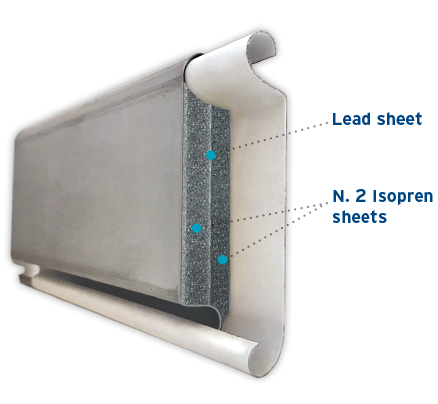

Double wall system with internal soundproofing material PIOMBOPREN^®, a soundproofing and sound absorbing panel made of 2 Isopren sheets and 1 lead sheet. The combination of the layers allows to obtain a total insulating power of Rw= 35 db.

TECHNICAL DETAILS

Nylon end-cups
Avoids the horizontal movement of slats, facilitates sliding inside guides and reduces noise.

Installation details

Inside or outside rolling up
DP110 structure with double wall profile, allows the curtain rolling up on both sides showing the best aesthetic and functional solution both in outside and in inside.

Sealing inside vertical side guides
The DP110 curtain planarity and the vertical side guides with double sealings, grant an optimal sealing inside guides of curtain.

Standard accessories

Visualizza »

Storm-proof guides in extruded aluminium »

Storm-proof guides in extruded aluminium

Storm-proof guides in extruded aluminium.
A reinforced shape ready to fit the stormproof system. Complete with seals, special fixing brackets and nylon skate.
Visualizza »

End profile SP 100 »

End profile SP 100

A raw steel reinforced end profile ready for fitting ground impact dampening rubber pads.

When the shutter size is > 8000 mm, a terminal double reinforcement is applied.

All the information shown in this document (descriptions, technical specifications, pictures, prices etc.) are indicative only, not binding and can be changed without notice. Despite it, this document remains valid.
