It grants an optimal thermal and acoustic insulation. The use of profiles with reinforced section helps to increase the rigidity and withstanding of curtain.
Materials and finishings
- pre-painted galv. steel or pre painted aluminium

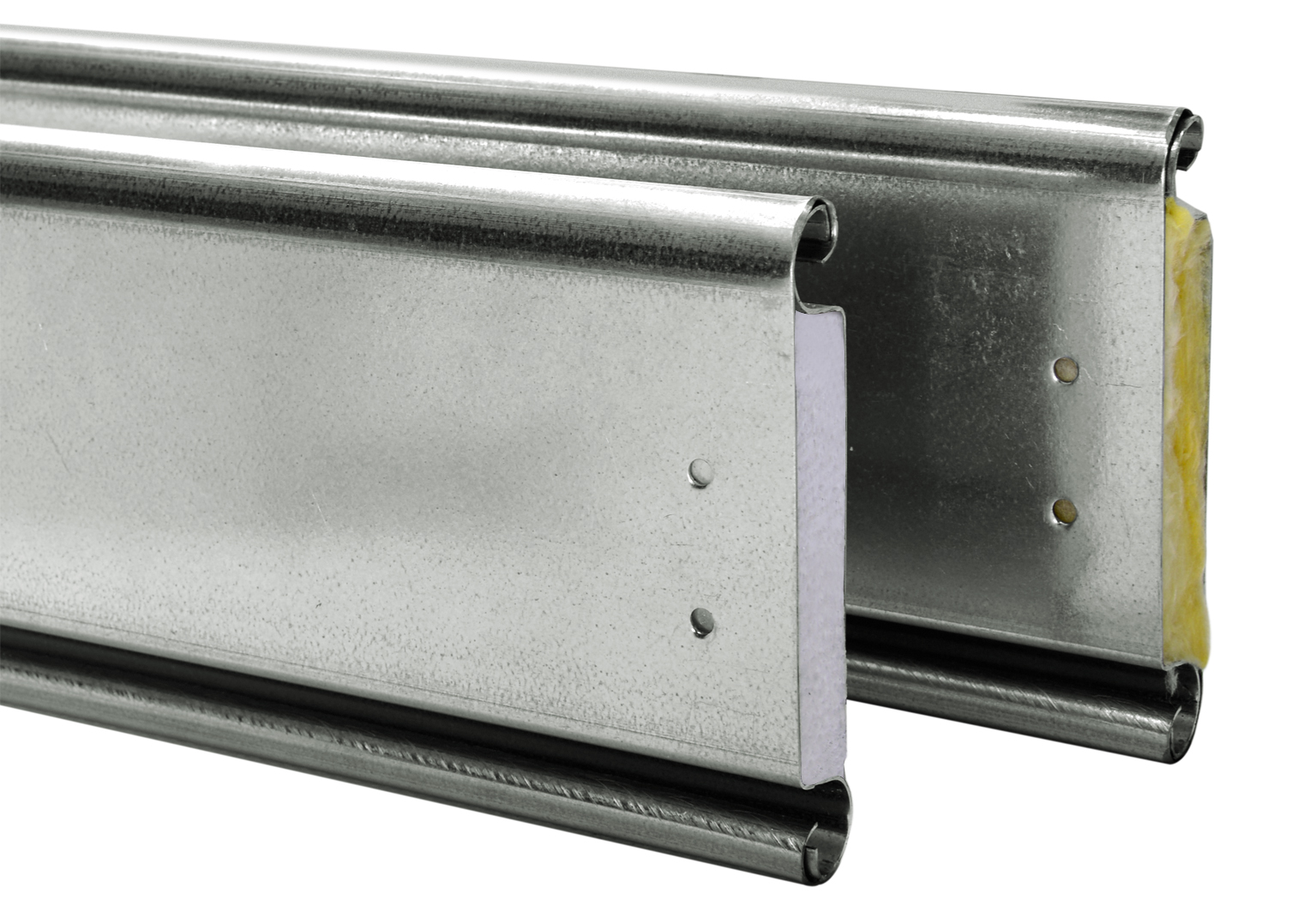

- polystyrene as insulated material
TECHNICAL DETAILS
Structure
Using different kind of production materials and different kind of insulated materials make the system suitable for each necessity of insulation also for high temperatures and in installation also in corrosive atmospheric environments.
Inside and outside faces at your choice:
• galvanized steel
• pre-painted galvanized steel
• stainess steel AISI 304
• stainless steel AISI 316
• aluminium mill finish
• fireproof rockwool
• high density polystyrene

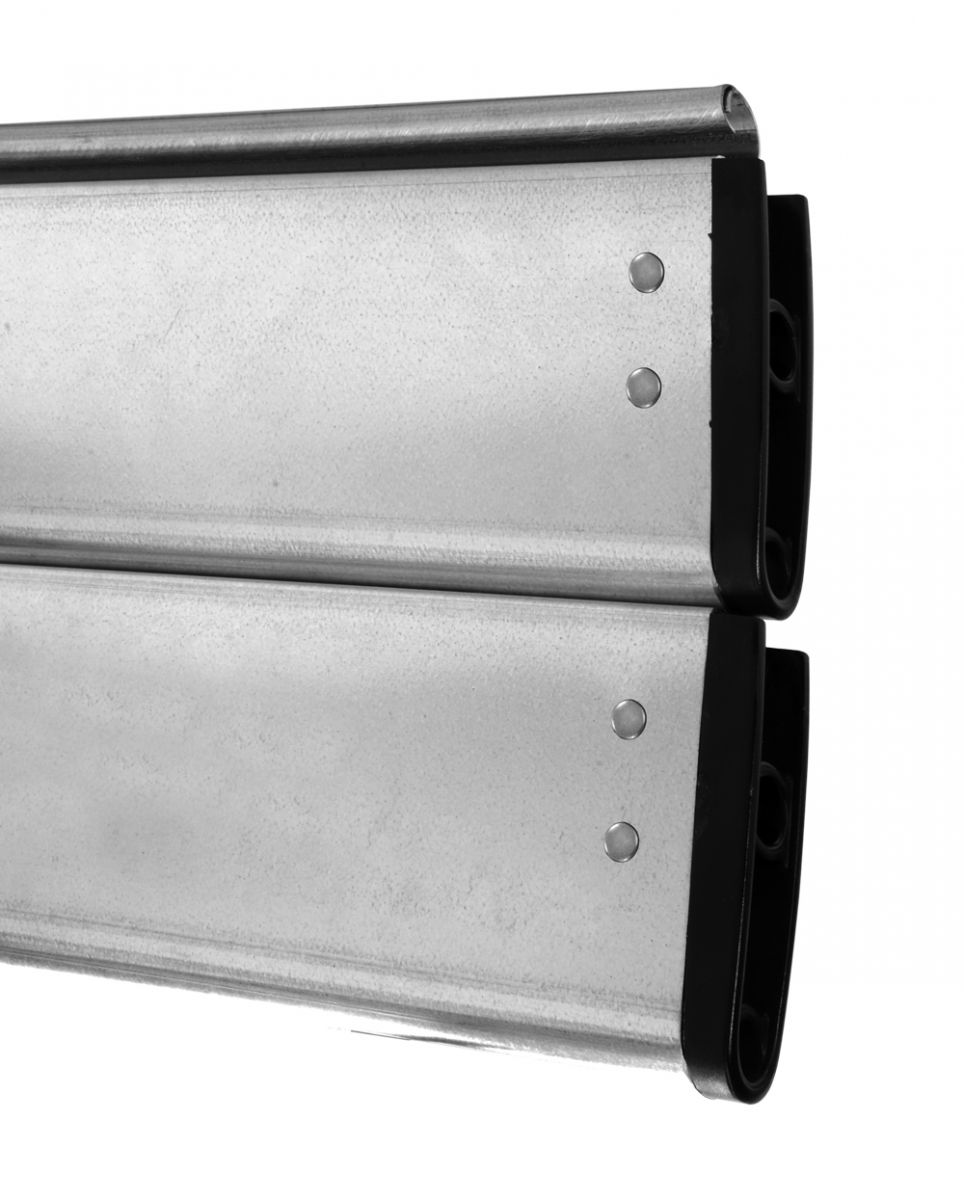

Nylon end-cups
Avoids the horizontal movement of slats, facilitates sliding inside guides and reduces noise.

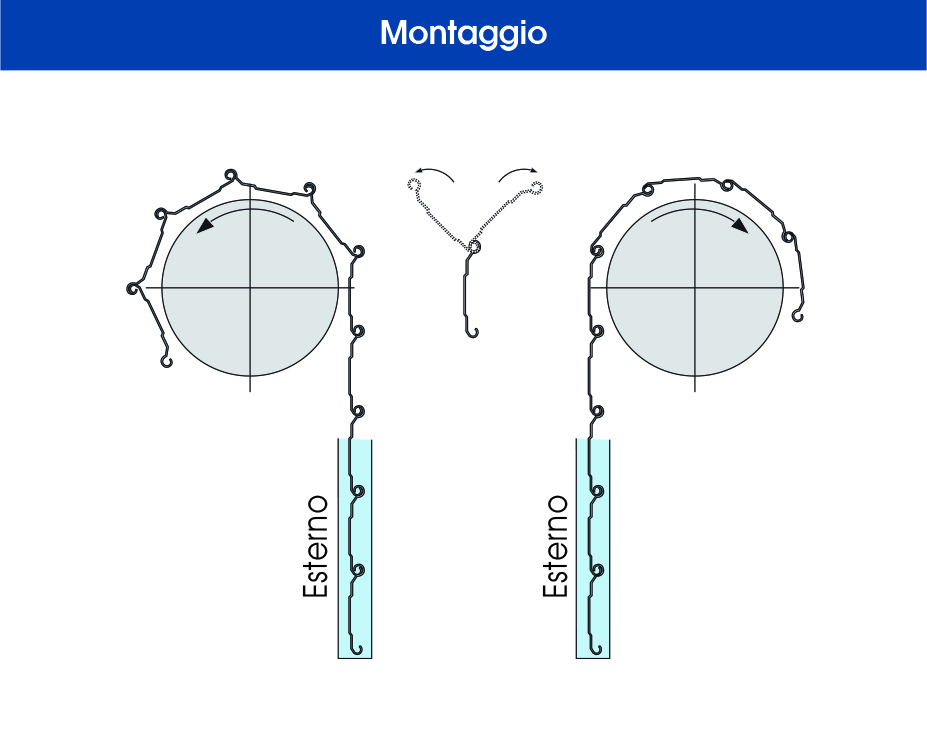

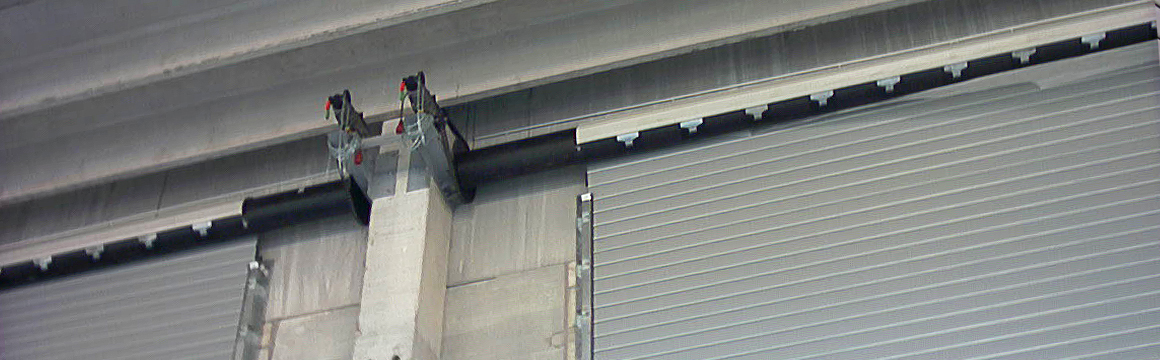

Inside or outside rolling up

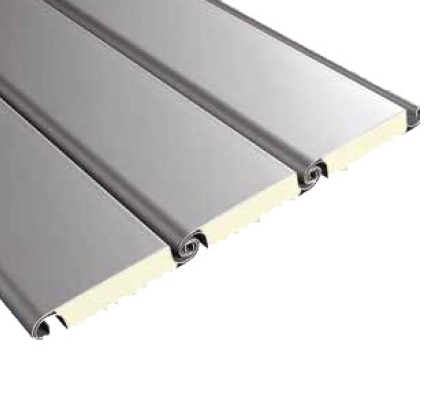

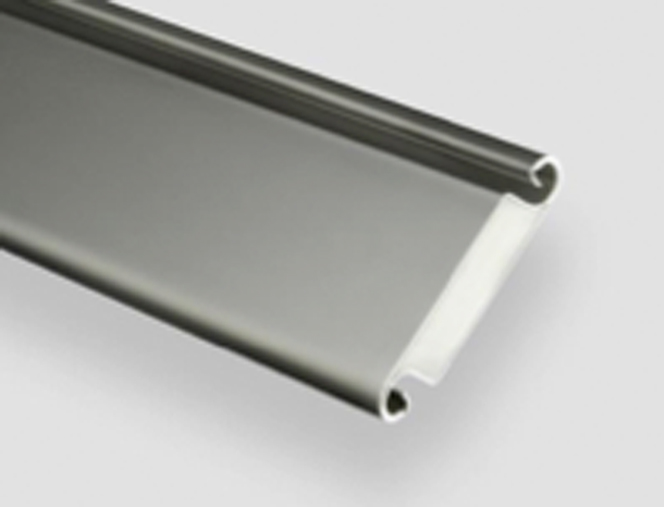

DP110 structure with double wall profile, allows the curtain rolling up on both sides showing the best aesthetic and functional solution both in outside and in inside.

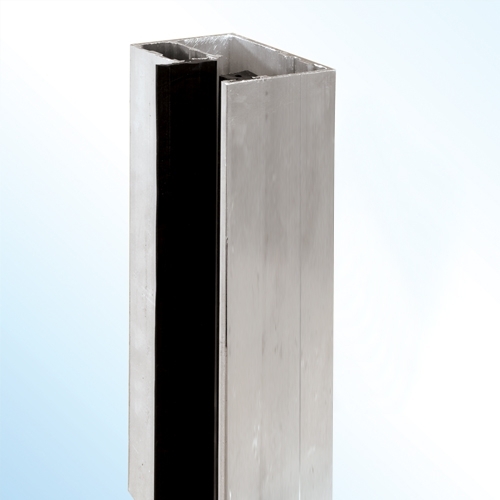

Sealing inside vertical side guides
The DP110 curtain planarity and the vertical side guides with double sealings, grant an optimal sealing inside guides of curtain.

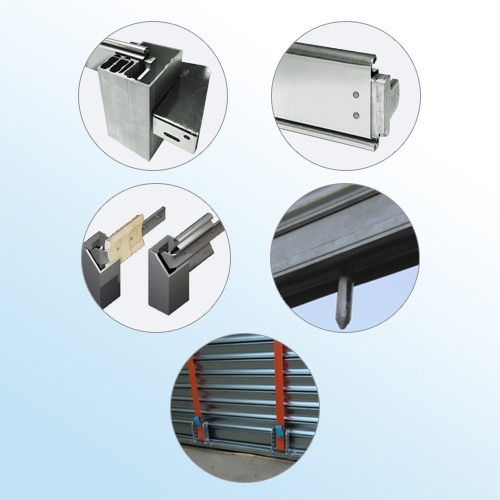

Withstanding against wind pressure in Class 4
The roller shutter is withstanding against wind pressure Certified in Class 4 in accordance with the UNI EN 13241-1 rule (the maximum possible class) until 12mt in width.
This certificate has been obtained form the most important European technical institute: TUV Nord - Germany.

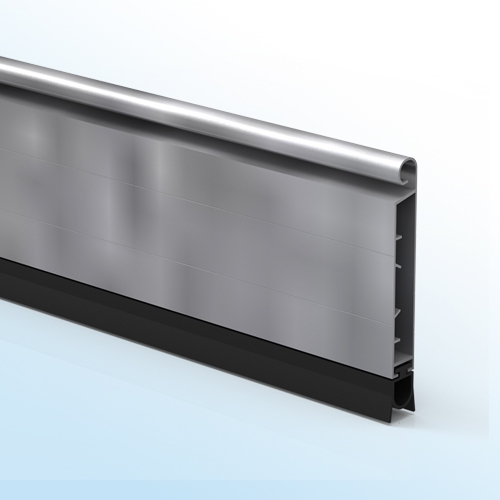

Standard accessories
OPTIONAL
All the information shown in this document (descriptions, technical specifications, pictures, prices etc.) are indicative only, not binding and can be changed without notice. Despite it, this document remains valid.
